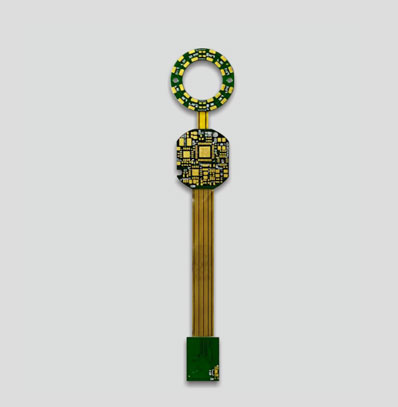

Four layers of soft and hard bonding board
-
Plate type： Four layers of soft and hard bonding board
Product process： Chemical nickel gold, green oil
Process parameter： Ni：2-3um、Au：0.045-0.075um
Base copper： 35um
Line width line spacing： 0.1/0.1±0.02mm
Minimum aperture： 0.25mm
Finished plate thickness： 0.99±0.1mm
Range of application： For precision instrument control panel/
- Product parameters
-
Plate type： Four layers of soft and hard bonding board
Product process： Chemical nickel gold, green oil
Process parameter： Ni：2-3um、Au：0.045-0.075um
Base copper： 35um
Line width line spacing： 0.1/0.1±0.02mm
Minimum aperture： 0.25mm
Finished plate thickness： 0.99±0.1mm
Range of application： For precision instrument control panel/
